TCI Engineering Releases A Direct Replacement F-100 4×4 Chassis For Classic Trucks

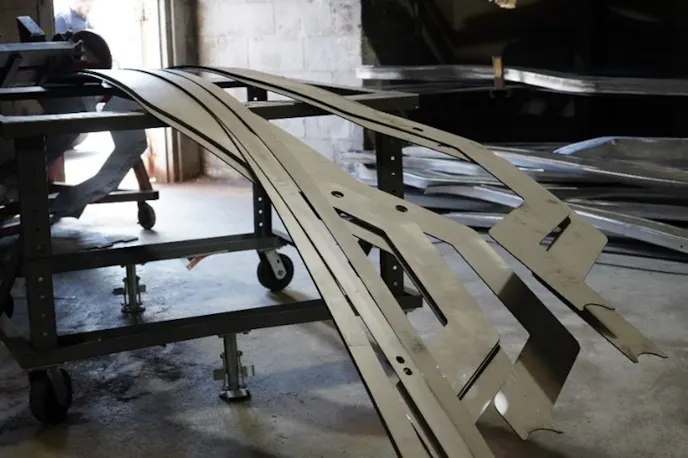

Locating a clean ’67-’72 F-100 4×4 chassis is sometimes difficult for classic truck restoration projects. Swapping that rusted factory frame usually creates endless fabrication headaches and even expensive garage delays. The engineering team at Total Cost Involved Engineering Inc. (TCI) replaces weak factory metal with a rigid, direct-fit foundation. Fabricators in Ontario, California, build this platform using 10-gauge plate steel, boxing the rails and welding a 3-foot honeycomb mesh insert straight down the middle.

Upgrading The ’67-’72 F-100 4×4 Chassis

To match modern power demands, the frame layout centers around late-model Ford V8 engine platforms paired with a driver-side output Atlas transfer case. Heavy-duty RockJock steering components work alongside a Borgeson steering box to eliminate bumpsteer on rough roads. Bolting up Jeep JL-based forged knuckles and five-lug unit-bearing hubs allows owners to mount 37-inch tires without losing articulation or turning radius. Custom Panhard bars and Fox steering stabilizers keep the front end tracking straight down highway lanes or rocky dirt trails.

Heavy-Duty Suspension And Axles

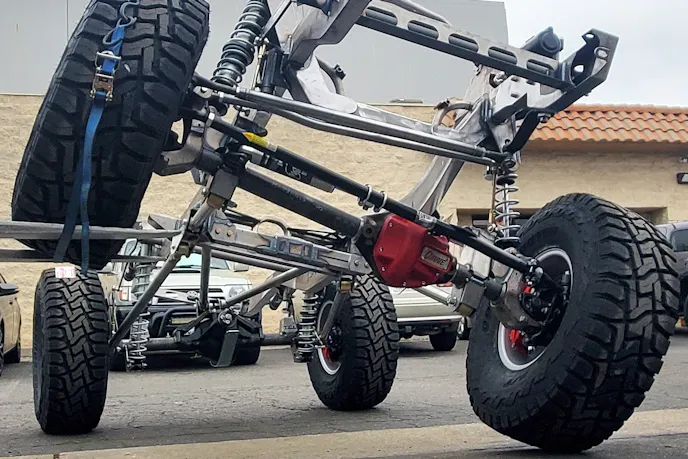

Partnering with Currie Enterprises and RockJock, engineers designed front and rear four-link suspension systems utilizing thick 2-inch tubing link bars. Heavy-duty Johnny Joints absorb intense off-road abuse while keeping roll steer to an absolute minimum. Positioned nearly vertical for maximum roll control, Fox remote reservoir coilovers deliver 12 full inches of wheel travel at all four corners. Standard Currie high-pinion axles feature 4.56 gearing and Truetrac differentials, giving truck owners incredible traction straight out of the crate.

Precision Welding In California

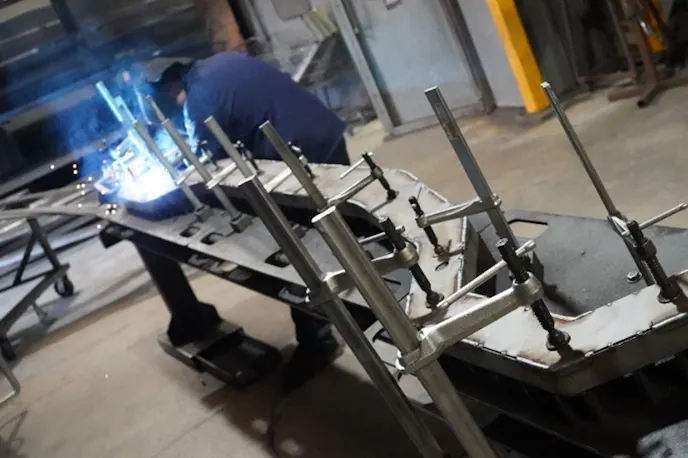

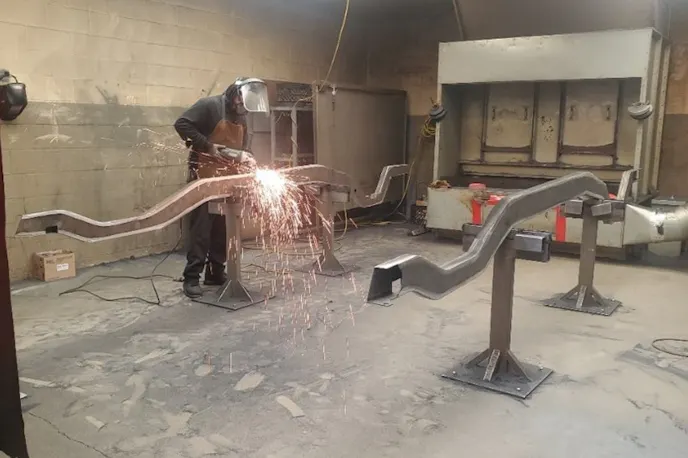

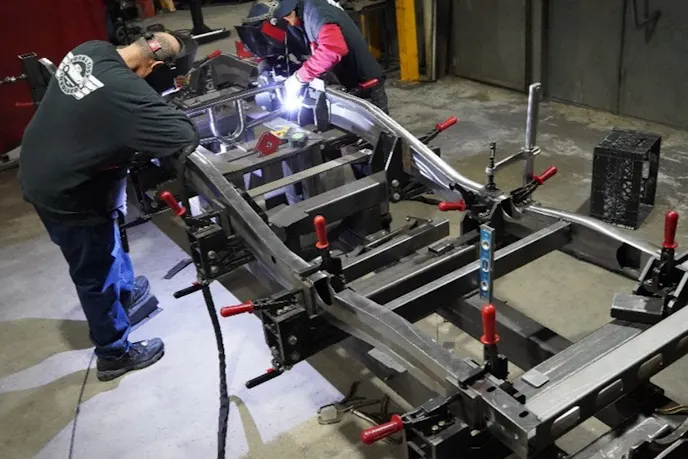

Laying down more than 120 feet of weld bead on every assembly, technicians fully capture each frame in custom fixtures to guarantee dead-accurate alignment. Grinding and smoothing all four weld edges before final assembly prevents fitment errors, guaranteeing factory body panels, cab mounts, and bumper brackets line up perfectly. TCI manufactures every single component inside its Southern California shop. Backing its product, the company includes a lifetime warranty on homebuilt parts alongside 6 years of coverage on wear items.

Upgrading Vintage Ford Trucks

Replacing a twisted factory frame provides vintage truck owners total peace of mind when driving on the highway. Opting for this ’67-’72 F-100 4×4 chassis can turn a tired workhorse into a high-performance off-road rig. Thanks to TCI, classic truck owners finally have a complete bolt-on option for their next restoration project.
