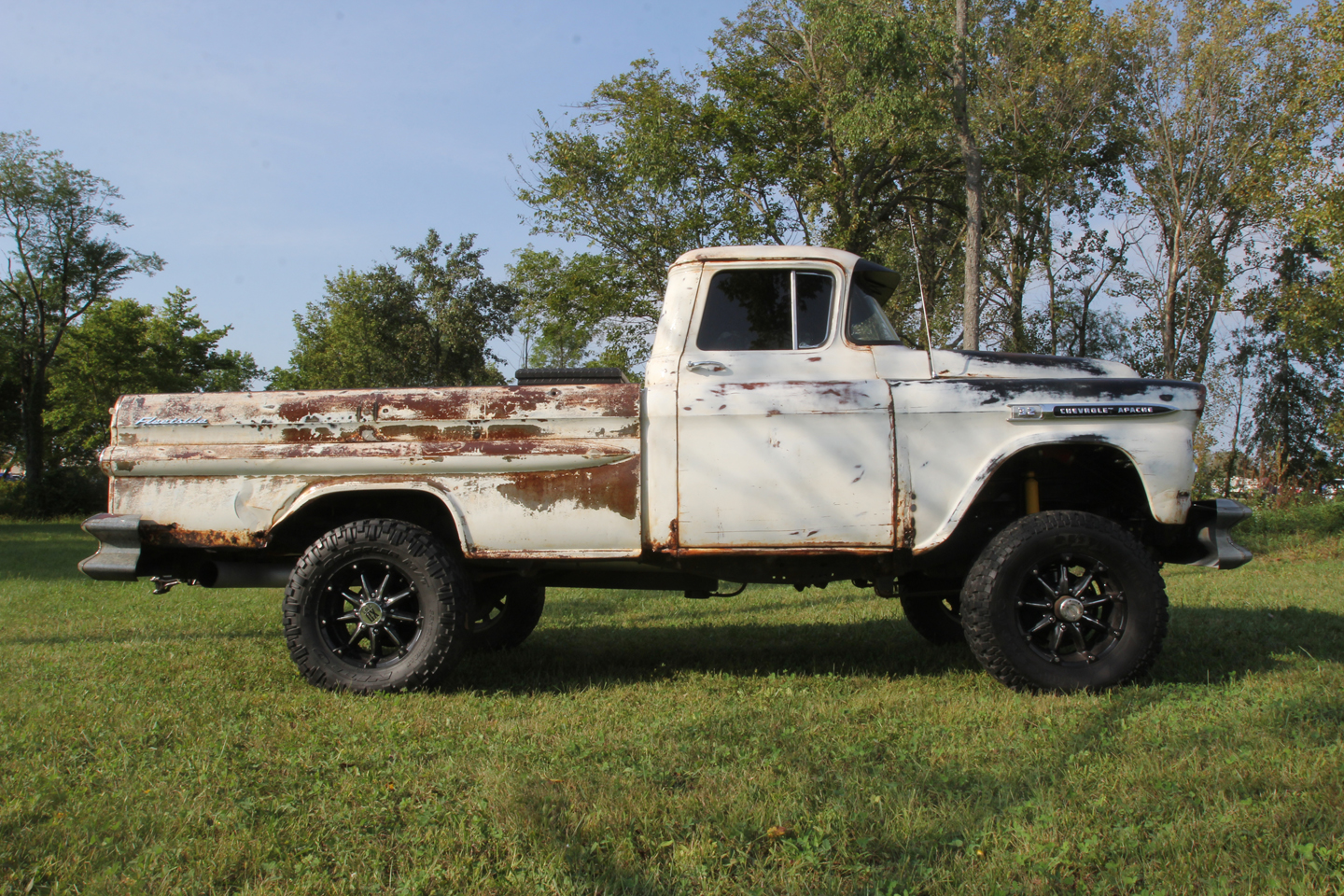

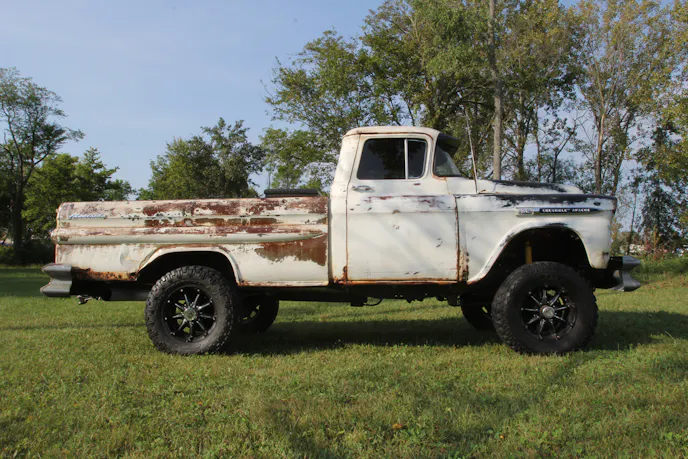

Eric Barrett of Marceline, Missouri, built this jaw-dropping 1959 Chevy Apache Fleetside 4×4 from the ground up. It’s a killer combination of vintage Chevy sheet metal, decades-old patina, stout Ford underpinnings, and Cummins turbodiesel power. And that’s just the beginning. Eric packed this one-of-a-kind rig with an impressive lineup of custom mods.
A Kansas Marketplace Find

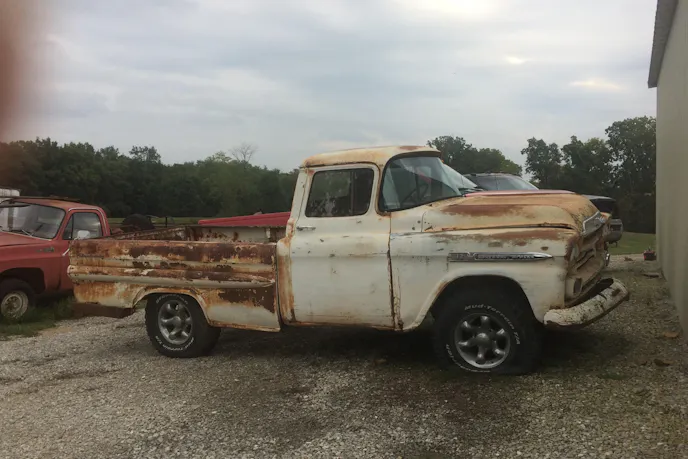

Eric, a welding equipment operator, spotted the old Chevy on Facebook Marketplace with a $500 asking price. It had been listed for quite a while with no takers, so he suspected a scam. But after speaking with the Kansas seller, he confirmed the deal was legit. “I loaded up the truck and trailer and a couple friends. A speeding ticket and a half a day later we were headed home with it,” he says.

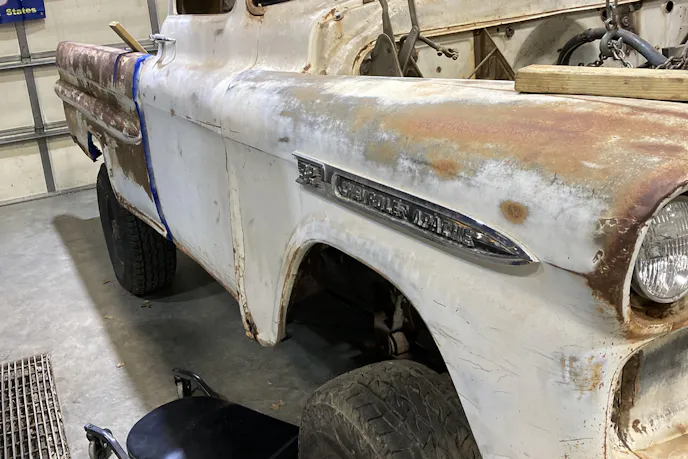

The Chevy was a wreck. It had been sitting for years and was missing its engine, transmission, seat, and one hood hinge. The wooden bed floor was rotten, and the doors had been left open, allowing the elements to trash the interior. But Eric saw potential where others apparently didn’t. He got to work, turning the neglected $500 Chevy into the awesome, one-of-a-kind 4×4 you see here.
Sitting On A F-250 Chassis
Eric scored a 1990 Ford F-250 4×4 donor truck, stripped and sold the parts he didn’t need, and recouped the entire purchase price. He then ditched the Chevy’s original chassis and dropped the Apache body onto the Ford frame. To make it fit, he chopped 11 inches from the center of the frame and added an 11-inch custom frame assembly behind the rear axle. He also modified the Apache’s original firewall to accommodate the engine, brake booster, and other components.
12-Valve Cummins From A School Bus

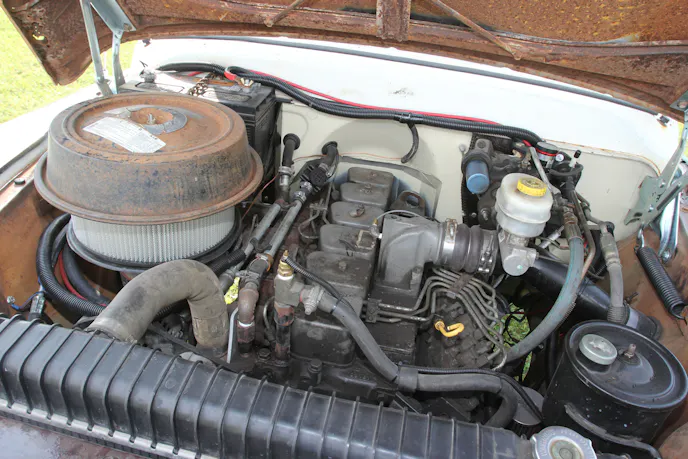

Under the hood is a 12-valve Cummins turbodiesel with an engine-driven air compressor, sourced from a Facebook Marketplace seller. The engine originally powered a 1995 school bus, and its maintenance history apparently paid off. When Eric removed the oil pan to reposition it for front axle clearance, he found impeccably clean engine internals.

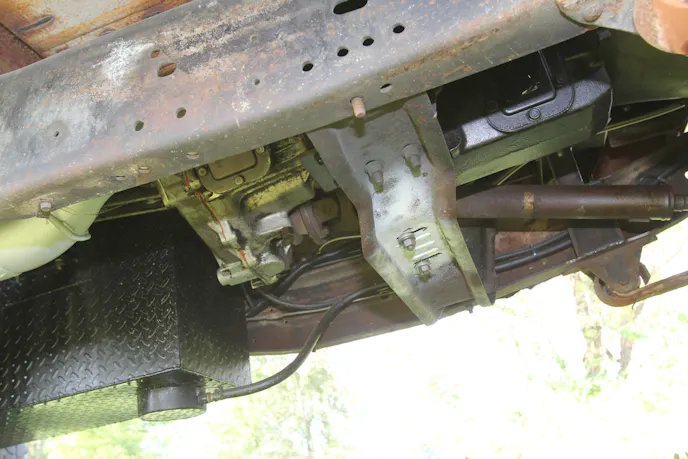

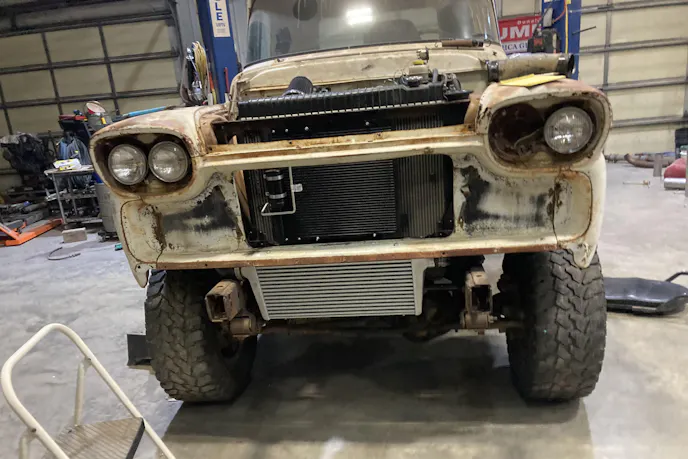

Eric left the Cummins “pretty stock,” but it exhales through a 4-inch downpipe connected to 5-inch-diameter exhaust tubing. Fuel comes from a custom 41-gallon tank, while intake air passes through an air cleaner sourced from a 1980s Winnebago camper. The F-250’s radiator and a pair of electric fans handle cooling duties. An industrial battery helps supply electrical power, and Eric secured it using a pair of his dad’s old snow chains.
The engine-driven air compressor feeds a rear-mounted tank that supplies air to a horn and a compressed-air system equipped with a 50-foot hose and reel. Painless Performance wiring replaces the Chevy’s trashed factory wiring.
Backing the Cummins is an NV4500 five-speed manual transmission that Eric scored from a wrecked 1999 Dodge 3/4-ton pickup. He also snagged the Dodge’s NP241DHD two-speed transfer case.
Dana 60 Up Front, Ford 10.25 Out Back

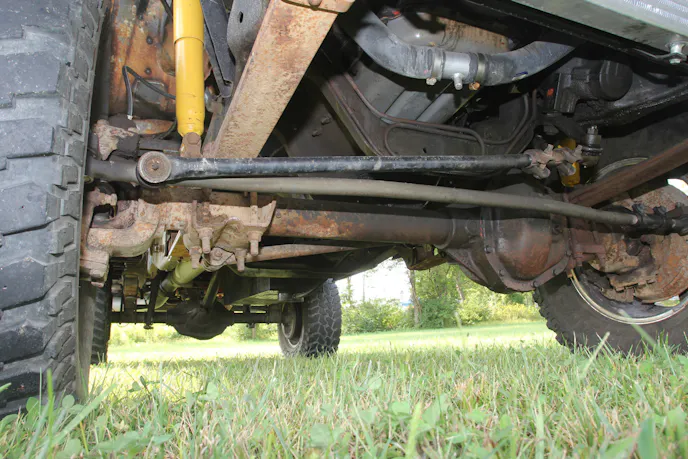

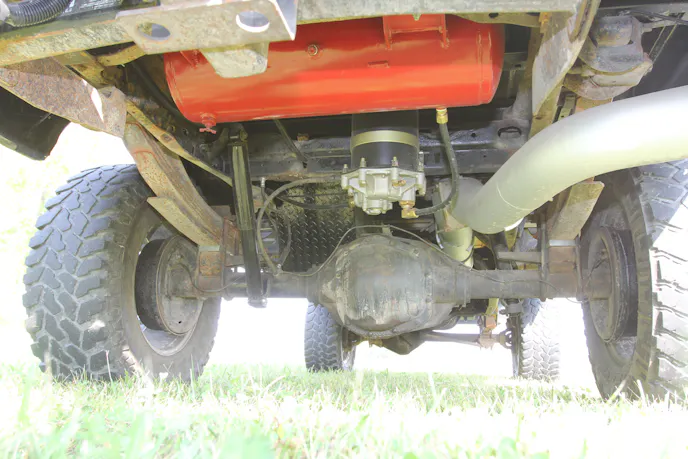

Up front, the Chevy sports a King Pin Dana 60 axle from a 1991 Ford F-350 cab-chassis truck. Out back is a Ford 10.25 axle from the F-250 donor. Both pack 4.10:1 gears.
The Chevy retains the F-250’s factory leaf-spring suspension, which Eric left mostly stock except for a set of NAPA shocks.
Putting power to the ground are 35×12.50R18 Firestone Destination M/T tires mounted on XD wheels that Eric scored through Facebook Marketplace.
Loads Of Custom Interior Features

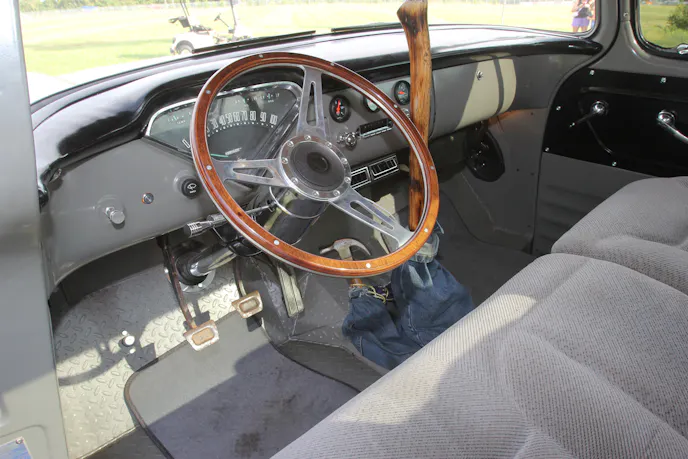

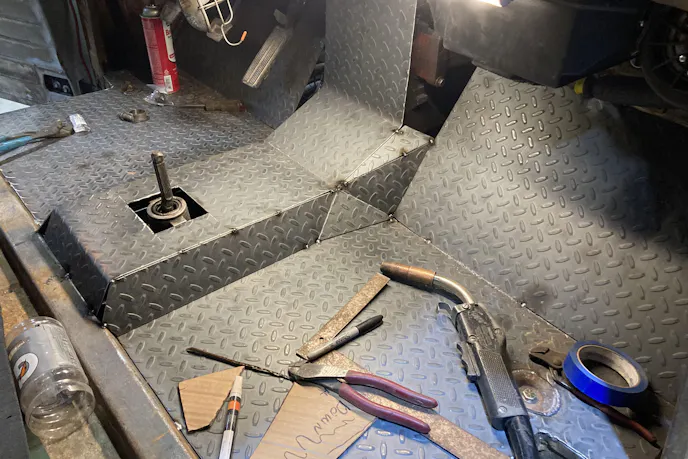

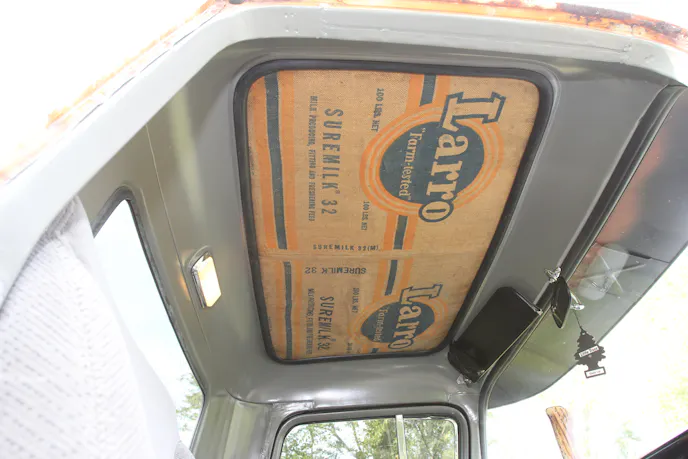

Inside, Eric mixed modern amenities with vintage components, one-of-a-kind details, and a dose of family history. The cabin sports an OBS Chevy seat, an LMC Truck radio with Bluetooth, Vintage Air A/C, gauges mounted in place of the factory dash vents, and a gunnysack headliner. Another cool touch is the transfer case shifter, fashioned from his grandfather’s well-worn carpenter’s hammerhead and a new handle. Other standout features include an axe-handle shifter with a pistol grip and a diamond-plate cab floor.
Patina Intact, Guardrail Bumpers, And Much More

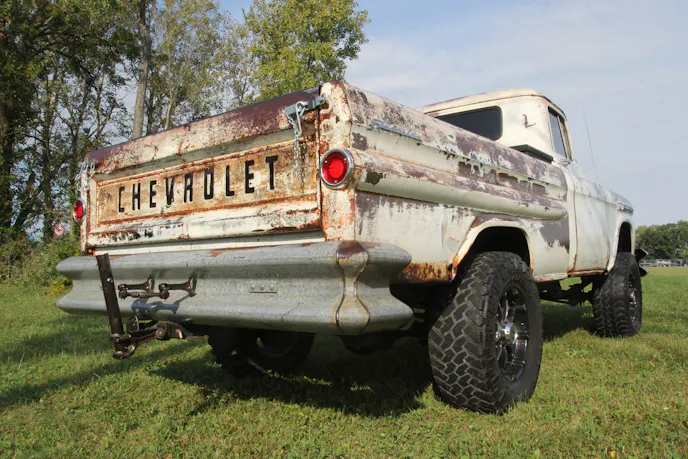

The Chevy’s exterior is a rolling collection of history, creativity, and clever fabrication. Eric preserved the truck’s decades-old patina, scrubbing it down before sealing it with clearcoat. Among its unique features are a large-caliber bullet hole in the bedside acquired sometime in its long history, visible welds that double as artwork, and a rear bumper step fashioned from connecting rods.

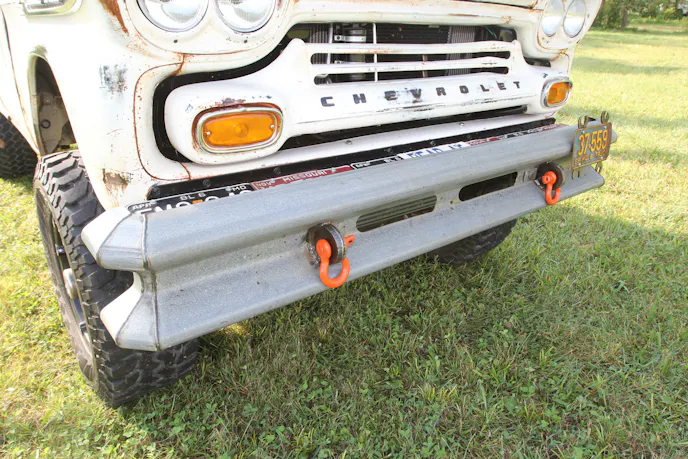

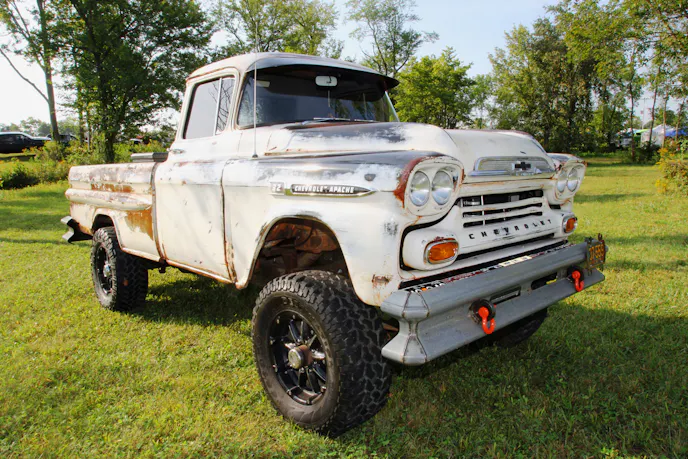

And those bumpers? Yep, they’re made from guardrails. Eric explains, “Once I got the major parts on and functioning, I didn’t know what I wanted to do for the bumpers. My buddy was over drinking beer and watching me work and said, ‘what about guardrails?’ I immediately said no, then I started to drink a few, then I said, hey, if I can wrap the corners I think that would look OK.” Eric eventually visited a used guardrail store, and the rest is history.
Rounding out the exterior are an underbody-mounted air dryer, LED headlights and taillights, and his dad’s old license plate.
Eric Has More Cool Rigs
When we met Eric at the 2026 4-Wheel Jamboree Fall Nationals in Danville, Indiana, we learned that Eric has other awesome rigs. His daily driver is a 2001 Ford F-150 SuperCrew packing a Mercedes-Benz OM606 3.0-liter inline-six turbodiesel. He also owns a 2000 Chevy 2500 Classic sporting a compound-turbocharged 12-valve Cummins backed by a five-speed manual transmission.
Photos by Ken Brubaker and Eric Barrett
